3JH40
Engine Specifications
Application: Sailing Engine
Power Output (HP): 40
Power Output (kW): 29.4
Rated Speed: 3000 RPM
Displacement: 1.642 L [100 cu in]
Cylinders: 3 cylinder
Bore x Stroke: 88mm x 90mm
Aspiration: Natural
Dry Weight: 192 kg
Dimensions: 774 x 580 x 632 mm
Certifications: RCD 2, EPA Tier 3, EPA Tier 3C, BSO II, EMC, SOLAS
Engine Specifications
Application: Sailing Engine
Power Output (HP): 40
Power Output (kW): 29.4
Rated Speed: 3000 RPM
Displacement: 1.642 L [100 cu in]
Cylinders: 3 cylinder
Bore x Stroke: 88mm x 90mm
Aspiration: Natural
Dry Weight: 192 kg
Dimensions: 774 x 580 x 632 mm
Certifications: RCD 2, EPA Tier 3, EPA Tier 3C, BSO II, EMC, SOLAS
Engine Specifications
Application: Sailing Engine
Power Output (HP): 40
Power Output (kW): 29.4
Rated Speed: 3000 RPM
Displacement: 1.642 L [100 cu in]
Cylinders: 3 cylinder
Bore x Stroke: 88mm x 90mm
Aspiration: Natural
Dry Weight: 192 kg
Dimensions: 774 x 580 x 632 mm
Certifications: RCD 2, EPA Tier 3, EPA Tier 3C, BSO II, EMC, SOLAS
The Yanmar JH-CR lineup brings you 5x Best in Class features – Clean, Interconnective, Quiet, Powerful & Fuel Efficient – setting the global standard in sailboat and small craft propulsion. With a range of power ratings across one design, the JH-CR engine is the perfect solution to fit across a wide variety of boats sizes and applications. And with a similar footprint to previous models and competition alike, it is the ideal choice for repowers.
Features
Genuine YANMAR-based engine featuring a custom-designed common rail system
Advanced fuel injection technology for sailboats and smaller motorboats and commercial vessels
Sets the global standard in sailboat and small craft propulsion
Wide range of power ratings in one model to fit a variety of applications
Versatile control options with mechanical control as standard and option to upgrade to electronic controls
Setting the Global Standard
Utilizing the long-established TNV industrial YANMAR block as the durable foundation, the 4JH-CR marine series incorporates an advanced custom-built Bosch common rail fuel injection system, This brings the advantages of common rail technology to sailboats and smaller craft, exclusively from YANMAR for this horsepower range.
JH-CR available in 5 output models – 40, 45, 57, 80, 110 mhp
All 4JH-CR models compatible with YANMAR SD60 sail drive (except the 4JH110)
A proven solution for jet and shaft drives

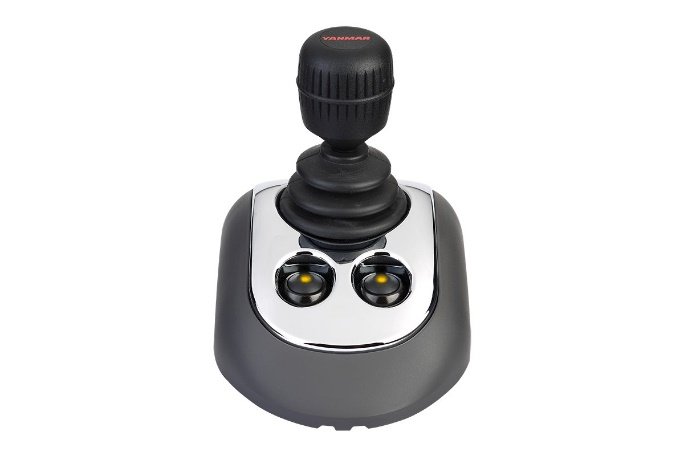

Controlled electronically by YANMAR VC10 Vessel Control System, with up to 3 stations (mechanical controls as standard)
SOLAS option and USCG lifeboat approved
Certified for recreational and light duty commercial applications
The world’s smallest common rail inboard marine diesel engine

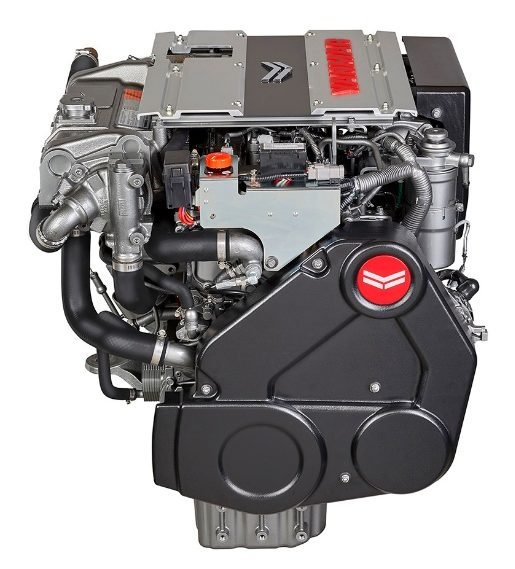

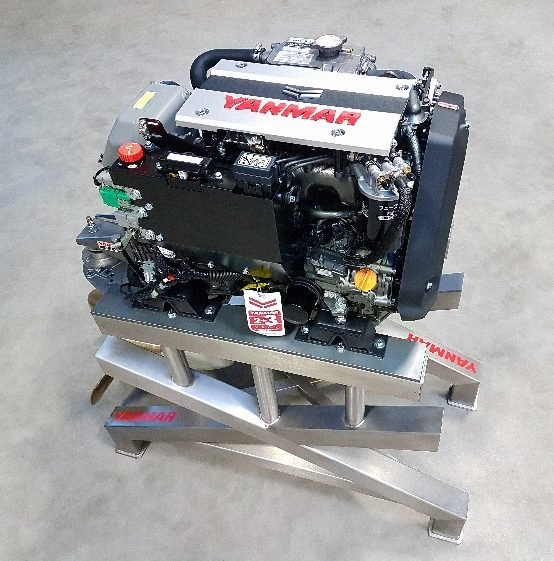

Introducing the new 3JH40, winner of the Miami Innovation Award for the Inboard Engine Category.
The 3-cylinder 3JH40, with an output of 40 mhp, will enable a whole new category of smaller leisure boat owners and commercial vessel operators to benefit for the first time from the efficiency and performance advantages associated with the most recent electronically-managed CR fuel-injection technology.
With an output of 40hp @ 3000 RPM (29.4 kW), the 3JH40 is the smallest common rail inboard marine diesel in displacement, physical size, and weight.
Through common rail technology, the 3JH40 offers minimal fuel consumption and exceptionally low noise and emission levels, exceeding EPA Tier 3 and EU RCD Tier 2 emission regulations for virtually smoke and odour-free operation.
The 4-stroke, water-cooled 3JH40 is an ideal solution for new builds and repowering applications, specifically monohull sailing yachts and catamarans up to 45ft, small motor boats or sloops, and light duty commercial craft.
